Product Code:	MPA-REA-RH
Availability:	Out of stock

~2-3 MONTH LEADTIME

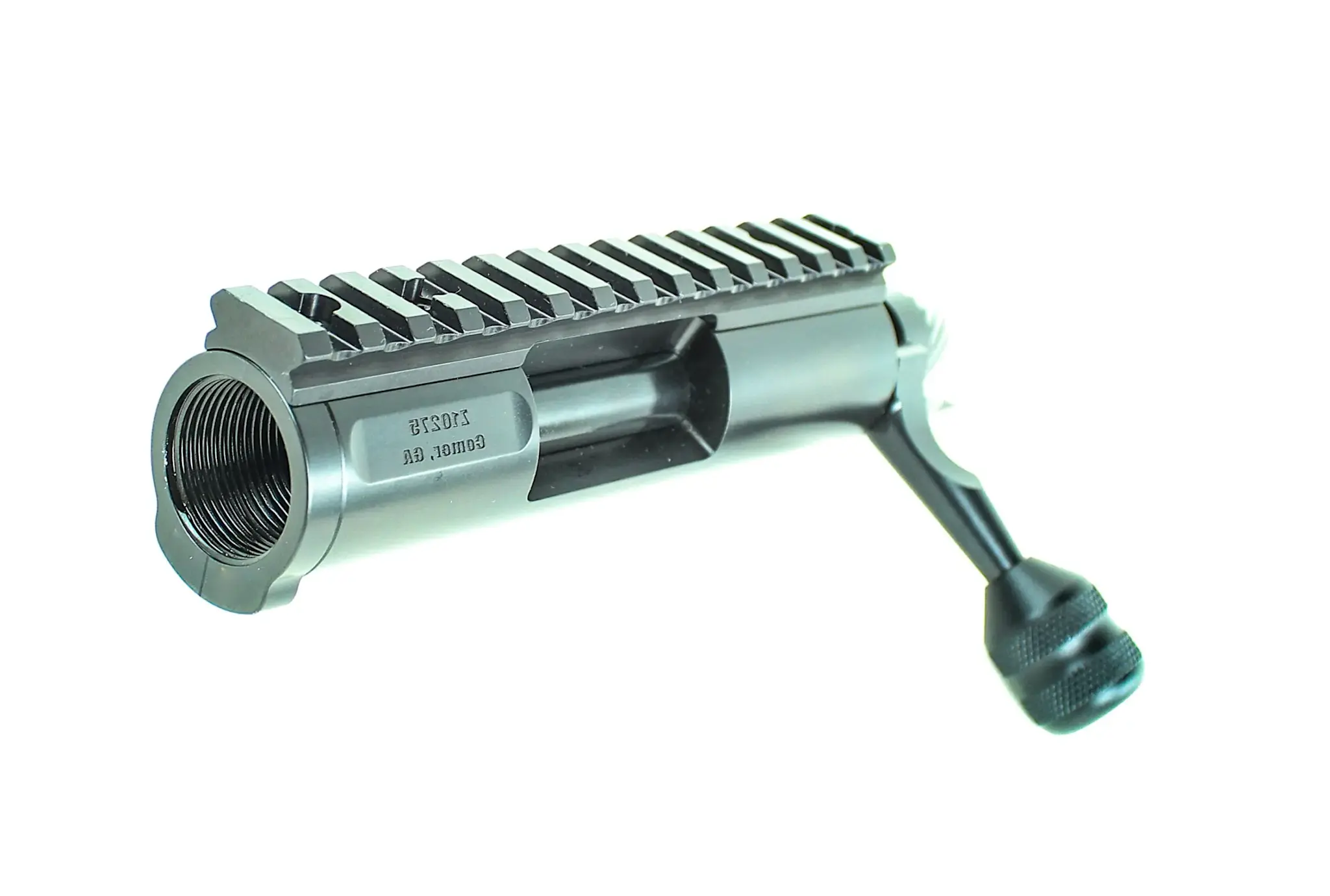

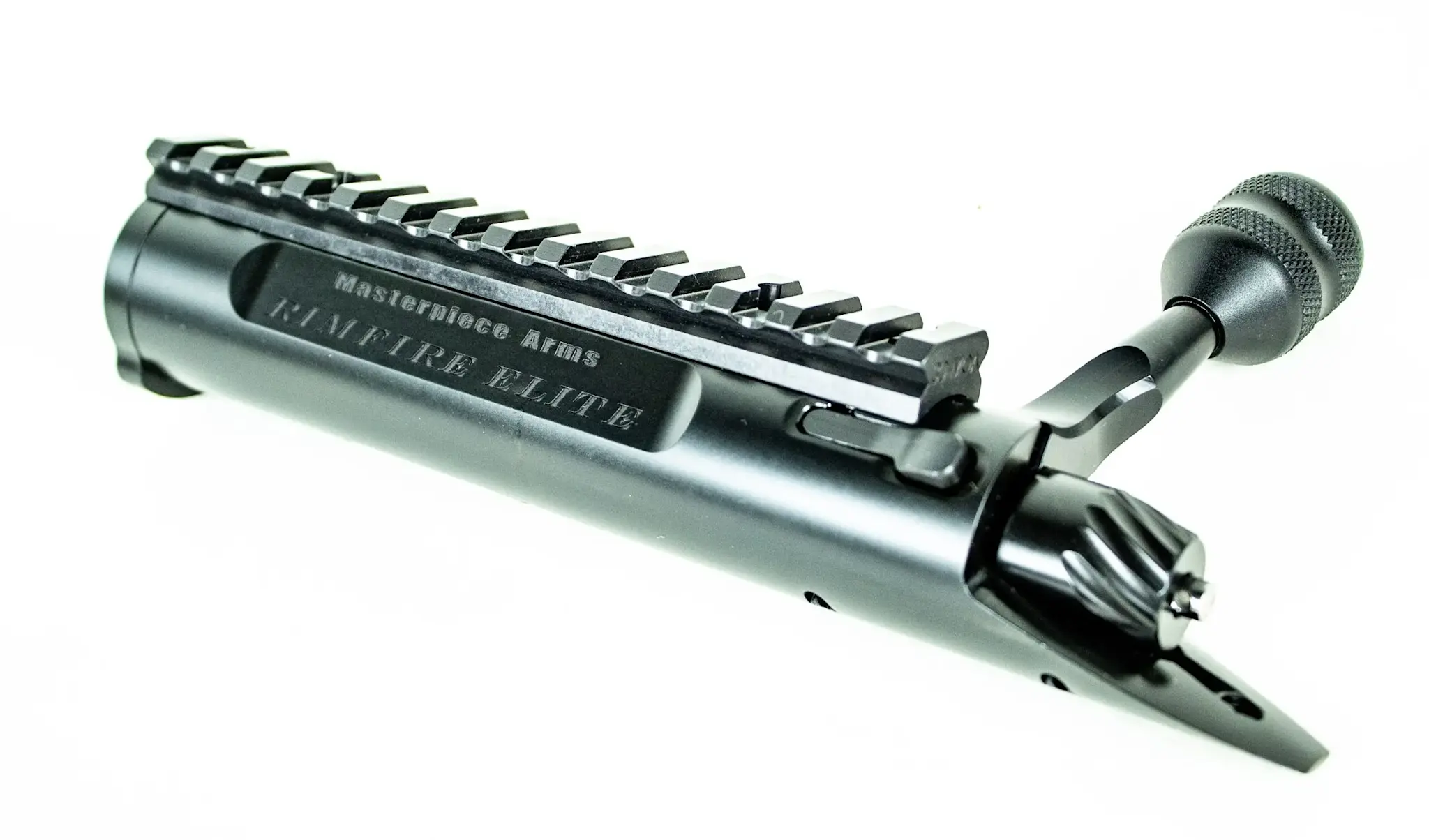

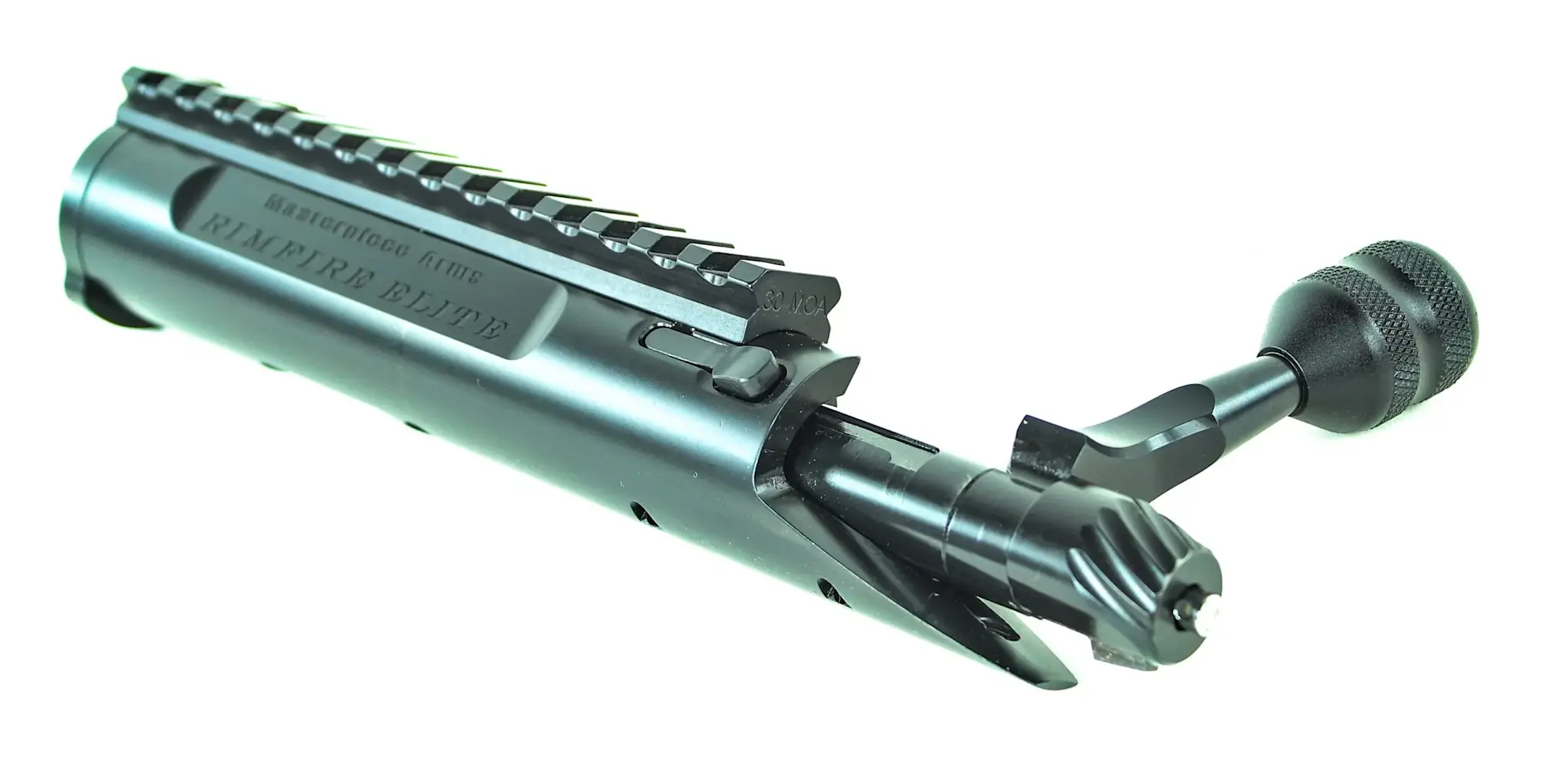

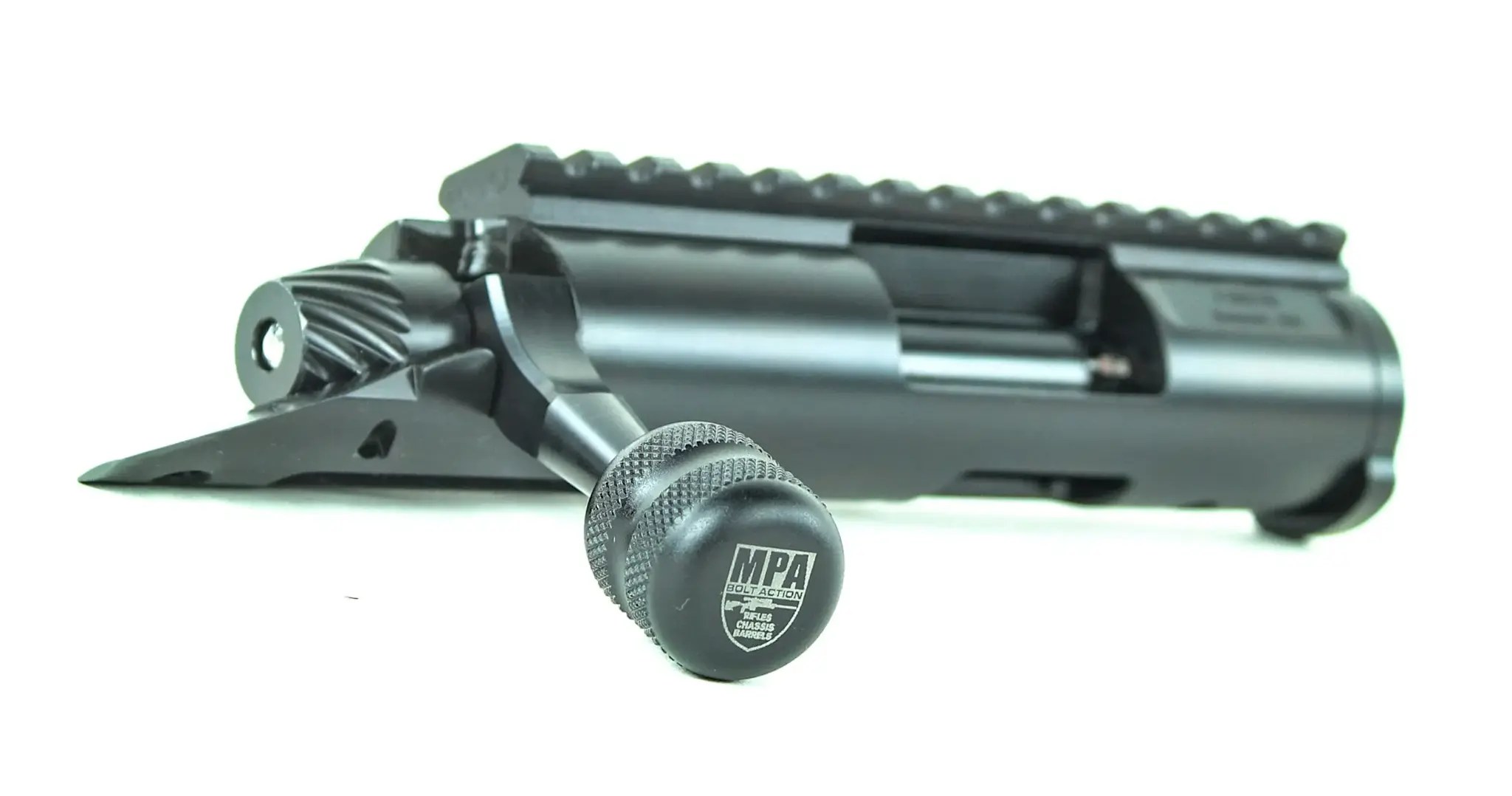

The Masterpiece Arms Rimfire Elite Action stands as a pinnacle of reliability, performance, and accuracy, utilized by elite shooters globally. This refined action design has been perfected through extensive manufacturing expertise, coupled with insights from leading competitive shooters, resulting in the most dependable, high-performance action available.

Furthermore, this action is supported by unparalleled customer service and a dedicated support team, offering enhanced engineering and performance documentation to maximize shooters’ potential in all Rimfire Competitive Environments.

 Receiver

• Remington 700 footprint
• Integral Recoil lug
• 30 MOA Picatinny rail
• 1 1/16-16 UN-2A Barrel Thread
• AICS Rimfire Mag compatible
• 60 Degree Bolt Throw
• Adjustable Trigger Hanger
• Robust, 11 o’clock bolt release
• Black Nitride Finish
• Fixed Ejector

Bolt

• 2 lug Design
• Reliable and Proven Pad and Hook Extractor Design
• Controlled-round-feed extractor with ability to push/single feed
• Standard 5/16-24 UNF 2A bolt knob thread
• Black nitride finish

At MPA, we understand that many of today’s shooters want to select their own Rifle Builder to create the exact barrel configuration per their shooting application.

With this in mind, we have created a useful and intuitive Barrel Tenon Drawing to be used by your trusted Rifle Builder to match up perfectly with our MPA Rimfire Elite Action. This also provides the data need to fine tune the exact headspace dims to match specific rim thickness per your ammo of choice.

rimfire-elite-barrel-tenon-rev-a-1
