CALYPSO INSTRUMENTS ULTRASONIC PORTABLE MINI AB

C$499.99
Product Code: CI-MINI-AB
Availability: Out of stock

BACKORDERS EXPECTED TO SHIP OUT JUNE 2025

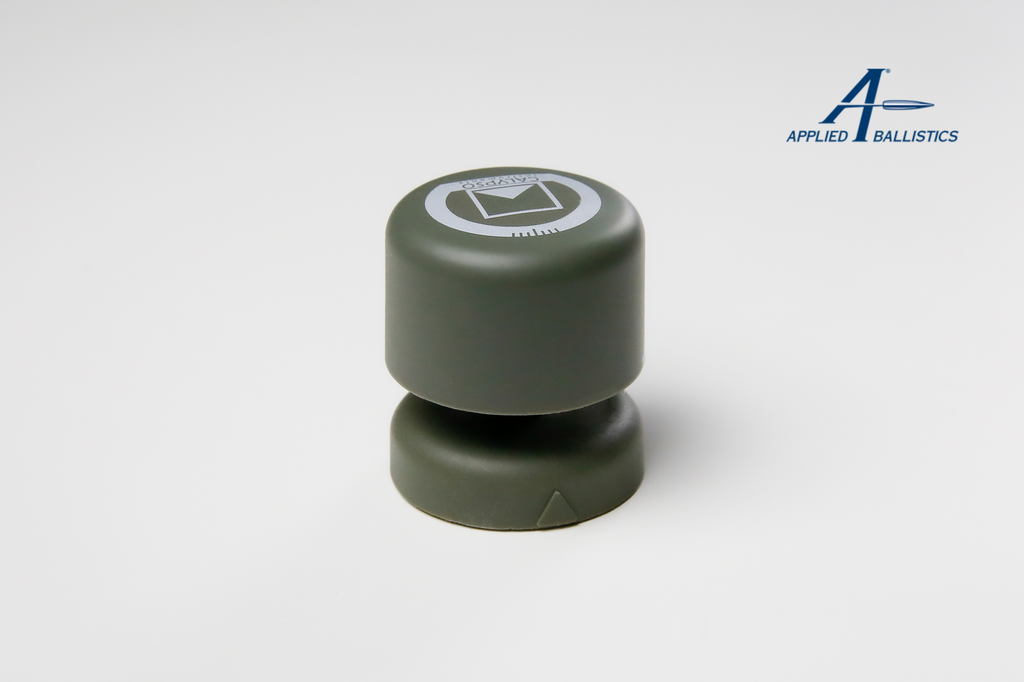

A miniature, Bluetooth, Battery powered, ultrasonic anemometer and wind vane.

Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable Mini AB is a wind meter that measures both speed and direction, allowing data logging via a free app.

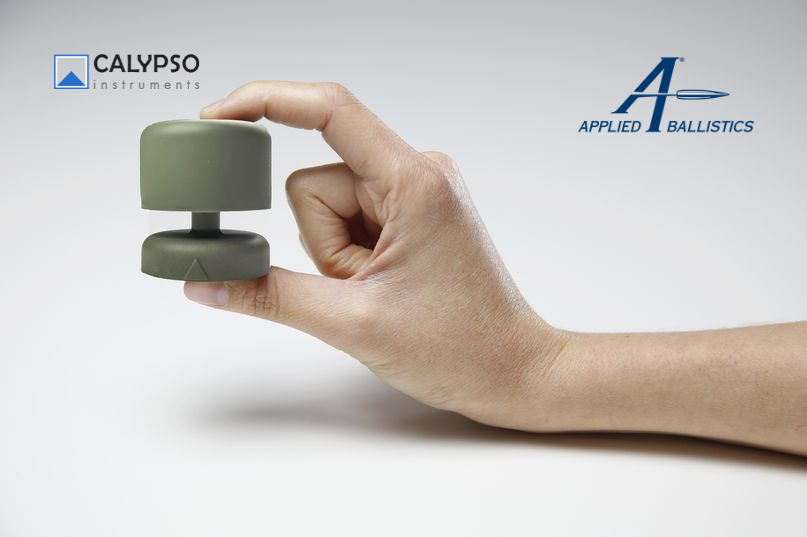

With just 43 mm diameter the Ultrasonic Portable MINI AB is a fully handheld, complete wind instrument.

It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.

Applied Ballistics Compatible

It's Applied Ballistics compatible, ensuring that you can connect it to any of your Applied Ballistics Devices. This will allow all of the Applied Ballistics users to connect this wind meter to their device and get accurate wind speed and direction.



Simple mount

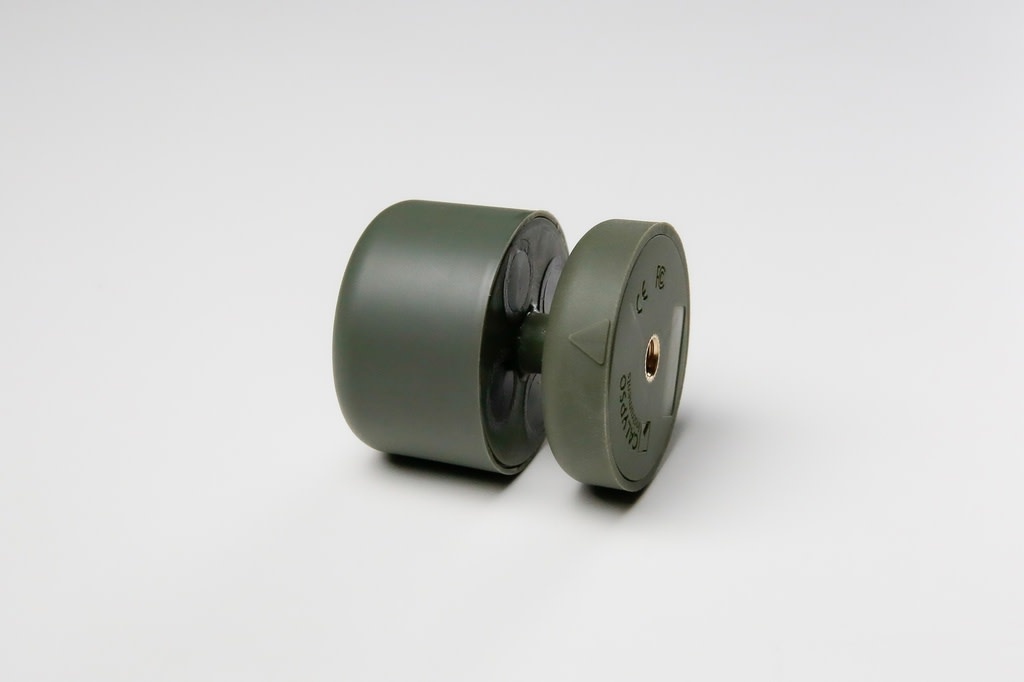

The Ultrasonic portable MINI AB has a female thread (1/4") perfect to be mounted on any tripod.

For those who want to see/read data while using Anemotracker App, the Phone Mount is the solution. A tiny accessory to put in the headphones hole there is in any Android phone.

Wireless and Battery Powered

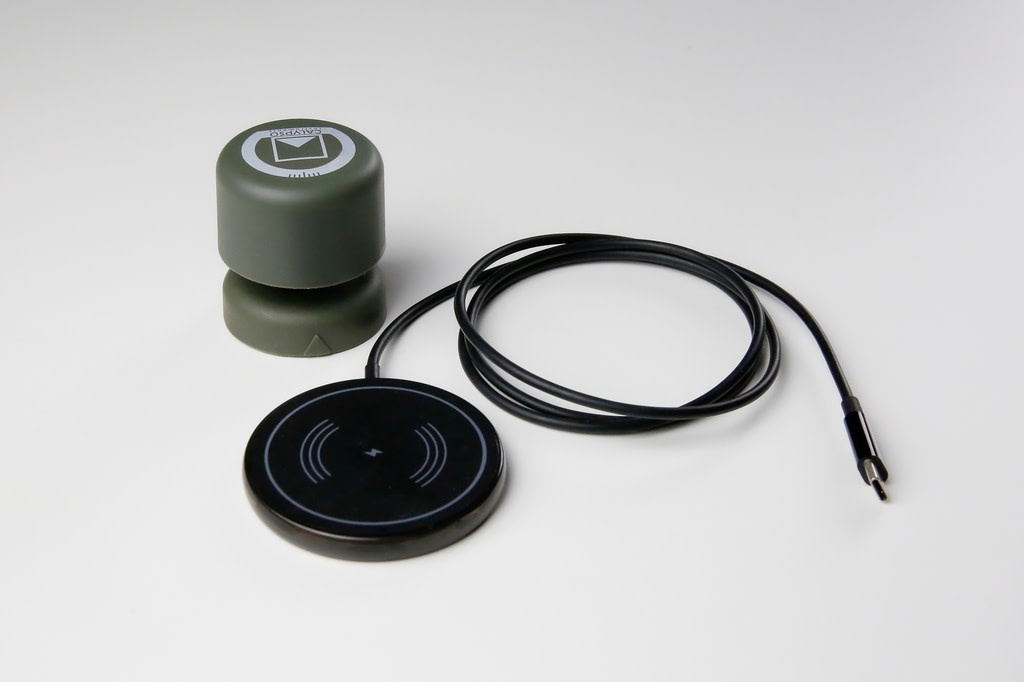

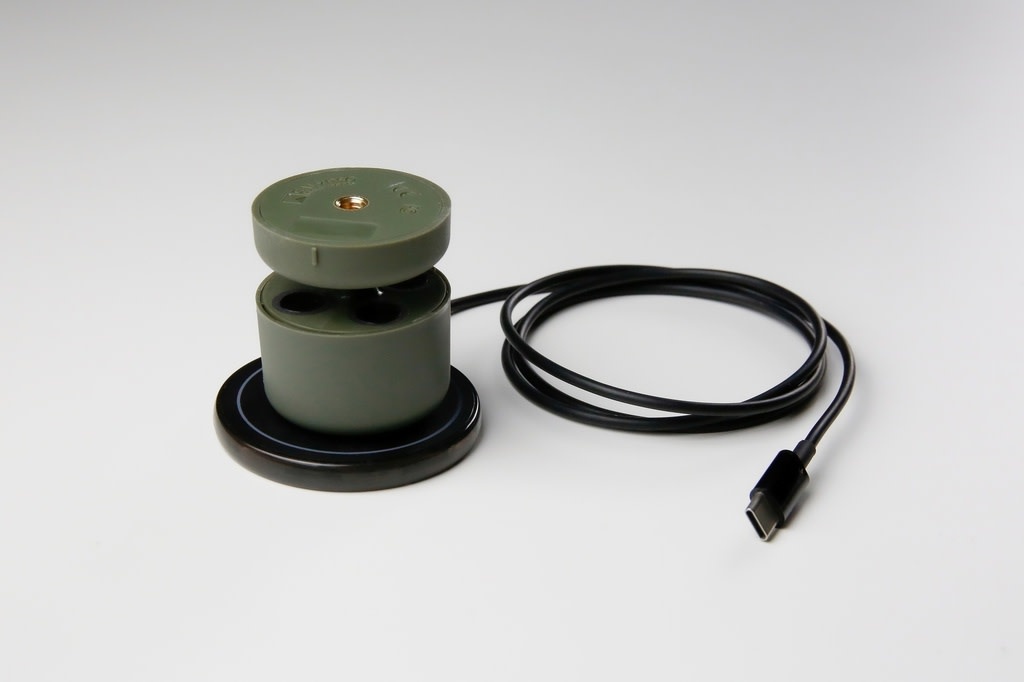

Wireless Charging QI- thanks to its Bluetooth connection, the Ultrasonic Portable Mini AB can be recharged on a wireless charged pad connected via USB to the power.



Special mention at the Dame Design Awards 2021

The Dame Design Awards recognize the best designed products at the Metstrade Show. Its unique relevance in the global marine marketplace emphasizes innovation and environmental impact among others.

MaterialInjected molded (green)


DimensionsDiameter : 43 mm (1.69 in.)
Height : 47 mm (1.85 in.)
Weight : 78 grams (2.75 oz.)Wind SpeedRange: 0.5 - 45 m/s (1.12 - 100 mph)
Accuracy : ±0.3 m/s at 10 m/s ( 0.67 mph at 22.40 mph)
Wind DirectionRange : 0-359º
Accuracy : ± 1

Wind Information
Aparent and real wind speed & direction via App


SensorsUltrasonic transducers ( 4x)

 Sample rate1 Hz

Power
Battery powered (Wireless charging QI)



Battery runtime150 hours of active use

Data OutputBluetooth 5.1

Bluetooth Rangeup to 30 m ( 98 ft.)



FirmwareUpgradable via Bluetooth



IP CodeIPX8 protection grade

MountTripod mount - female thread screw

CompatibilityAndroid & IOS devices, tablets, Garmin watches

Data OutputBluetooth
